200W Glass Solar Panel and 120W Rigid Photovoltaic Solar Panel System for Balcony Home charging battery Outdoor power supply
200W Glass Solar Panel and 120W Rigid Photovoltaic Solar Panel System for Balcony Home charging battery Outdoor power supply
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: xinpuguang
Origin: Mainland China
Number of Panels: 1
Flexible Solar Panel: No
Foldable Solar Panel: No
Hign-concerned Chemical: None
Type: Solar Panel
Module Efficien: 24%
Model Number: Solar panel
Size: 1140*700*25mm /1160*530*25mm
Material: Monocrystalline Silicon
Nominal Capacity: 200W /120W
Number of Cells: 36 cell
Max. Power: 200W /120W
is_customized: Yes
Certification: CE
Certification: FCC
Certification: RoHS
Certification: weee

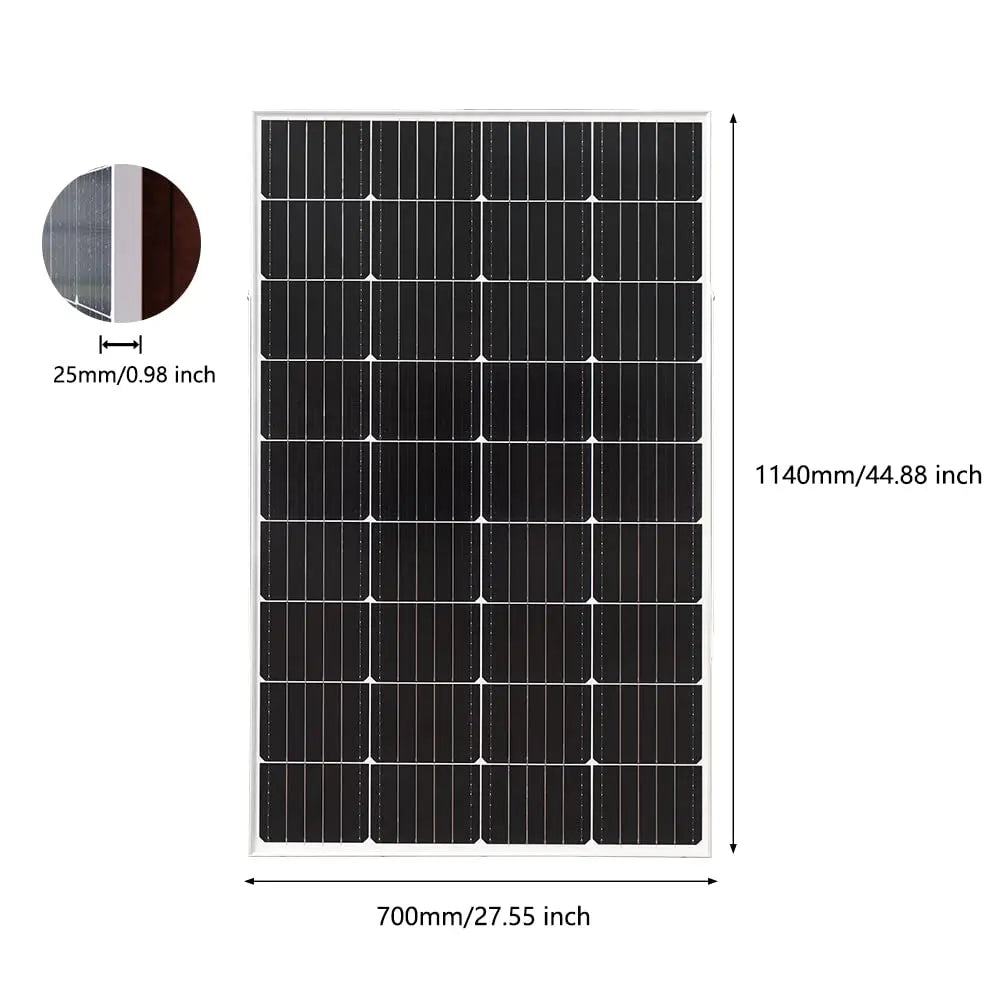

200W Solar panel size: 1140*700*25mm

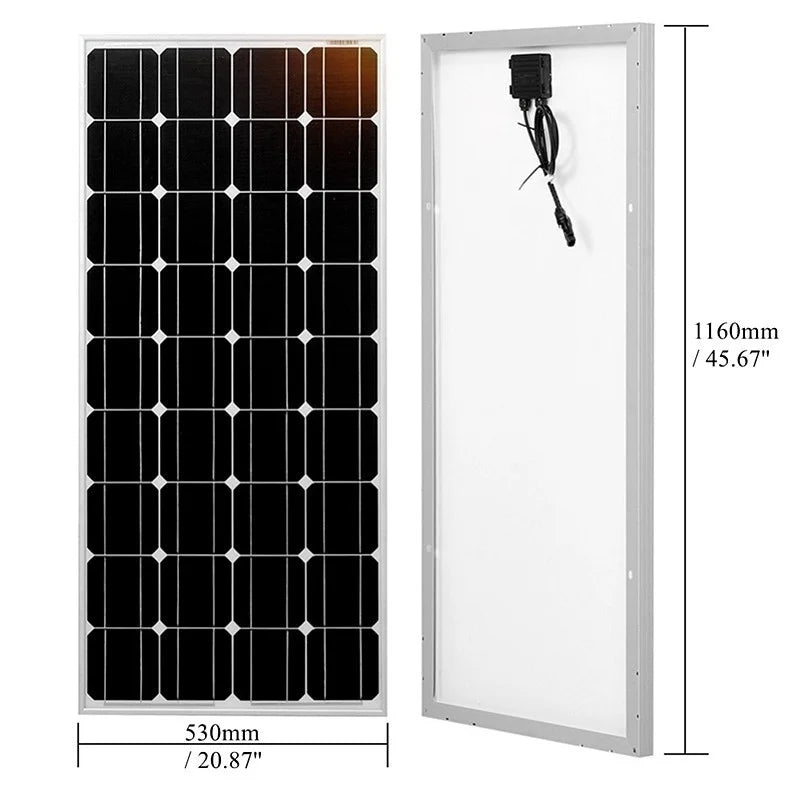

120W Solar Panel size: 1160*530*25mm
200W Solar panel Voc: 23.76 V
200W Solar panel Vmp: 31.68V
120W Solar panel Voc: 18V
120W Solar panel Vmp: 21.6V
120W Solar panel Imp: 6.5A
This solar panel kit is perfect for different outdoor activities, like illuminating use, camping, hiking, climbing ,Irrigation, battery charging etc. Nice for both indoor and outdoor use. What are you waiting for? Just come and buy.
Note: tempered glass
Features:
Solar energy, eco-friendly, energy inexhaustible, cost-saving and user-friendly.
High conversion monocrystalline solar panel for s-afe & endurable use.
Portable and compact design fit for both outdoor and indoor usage.
Provided you a alligator clip fits to be the power-supplys for different equipment.

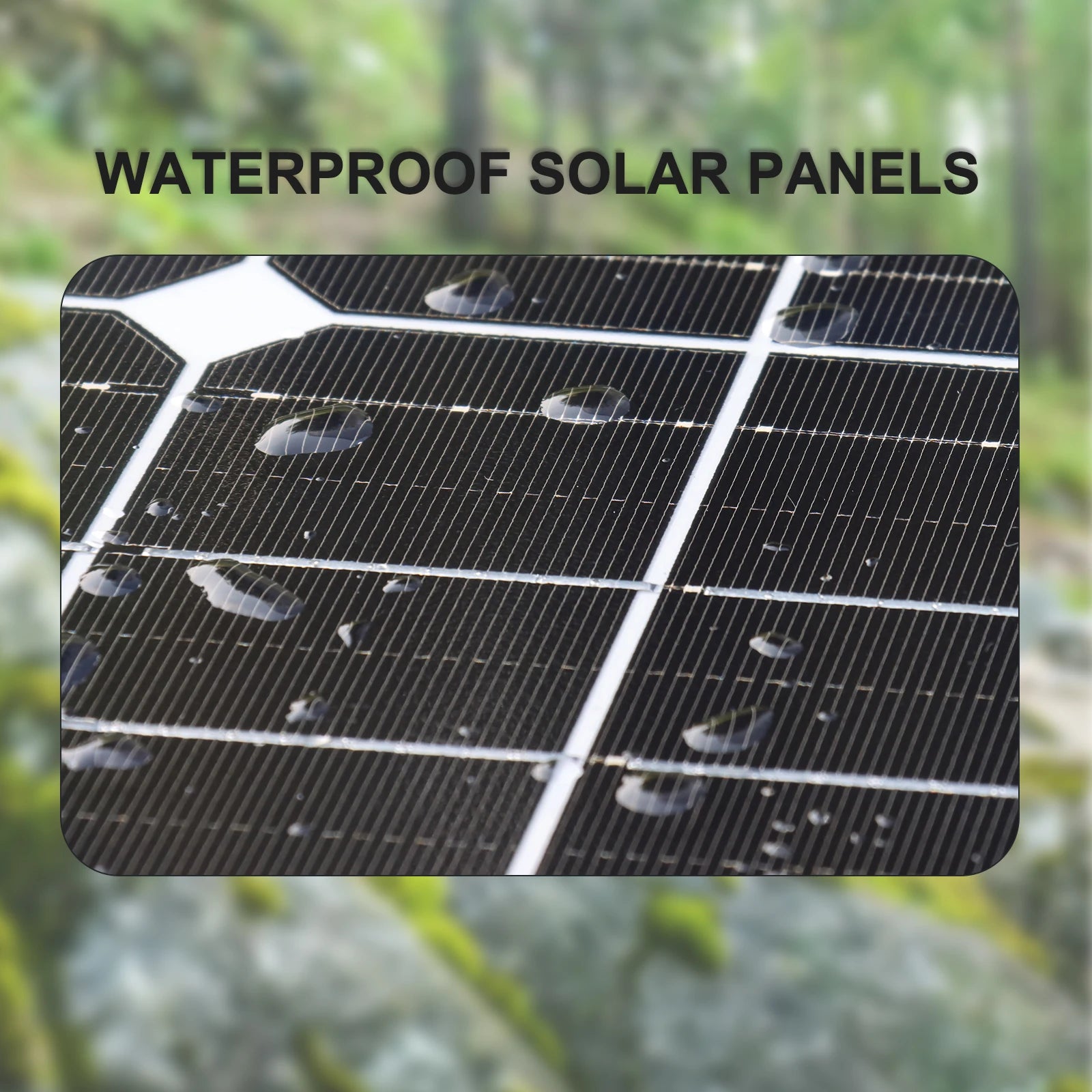

Rechargeable, no e-xtra wires and IP65 water resistance ensures it to be used in bad weather.
Perfect and s-afe to use in various applications, such as home, industrial, commercial etc.
Maximum power(Pmax) 200W
Vmp(Voltage at Max Power, V): 31.68V
Voc(Voltage at Open Circuit, V): 23.76 V
Output Tolerance: ±5%
Diode: 2 By Pass
Junction Box: IP67 Rated
Temperature range: -20℃-+80℃
Frame: Heavy & Solid Aluminum Alloy
Kind of Glass: 3.2mm Tempered glass
Output Cable: 2.5mm²/14AWG 90mm/3.54＂
Dimensions: 1140*700*25mm
Weight: 7.96kg
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5
Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
This solar panel kit is perfect for different outdoor activities, like illuminating use, camping, hiking, climbing etc. Nice for both indoor and outdoor use. What are you waiting for? Just come and buy.
Note: tempered glass
Features:
Solar energy, eco-friendly, energy inexhaustible, cost-saving and user-friendly.
High conversion monocrystalline solar panel for s-afe & endurable use.
Portable and compact design fit for both outdoor and indoor usage.
Provided you a alligator clip fits to be the power-supplys for different equipment.
Rechargeable, no e-xtra wires and IP65 water resistance ensures it to be used in bad weather.
Perfect and s-afe to use in various applications, such as home, industrial, commercial etc.
Specification of 120w
Maximum power(Pmax) 120W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.8 A
Maximum power current(Imp) 6.5A
Cell efficiency 22%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 5600g
Size 1160*530*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

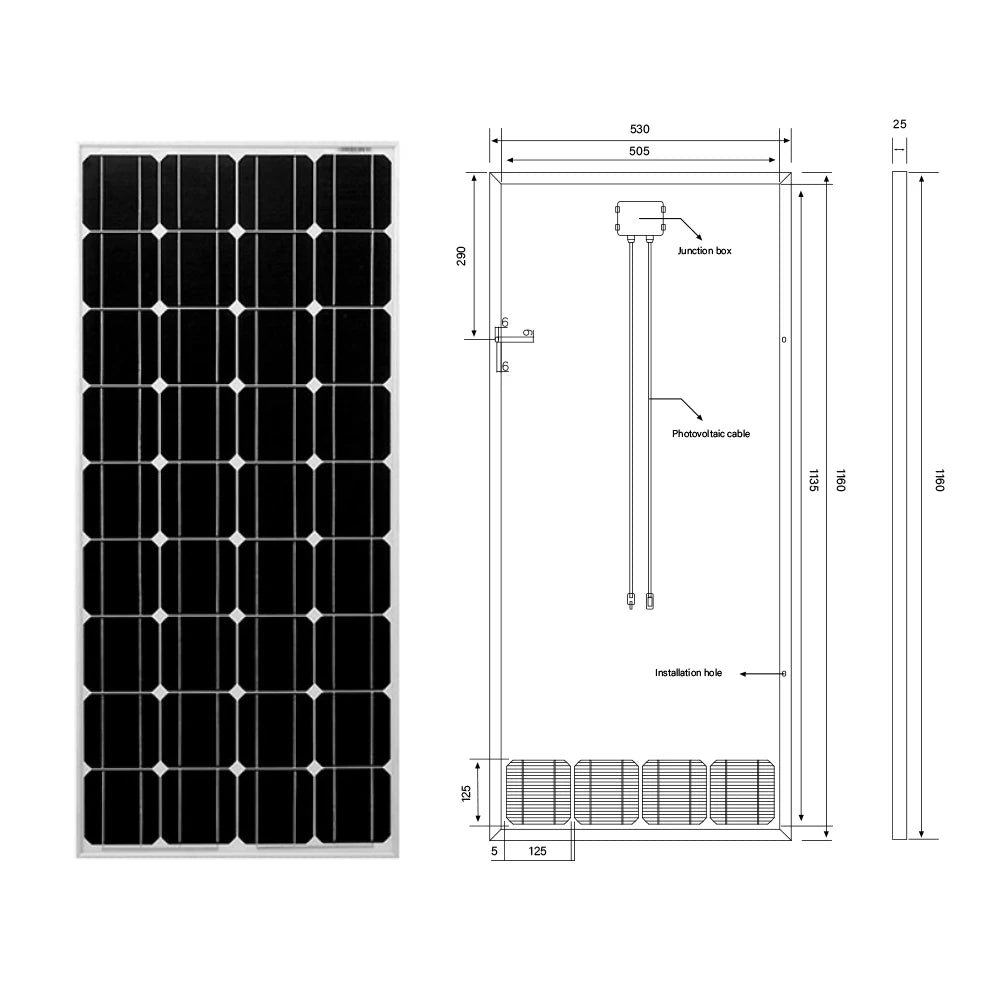

Solar panel and bracket mounting diagram
Solar panels can be used outdoors to charge batteries, or to power street lights, monitors, etc.
Solar panels can be used for grid-tied solar panel systems
Solar panels can be connected to a DC water pump for power
