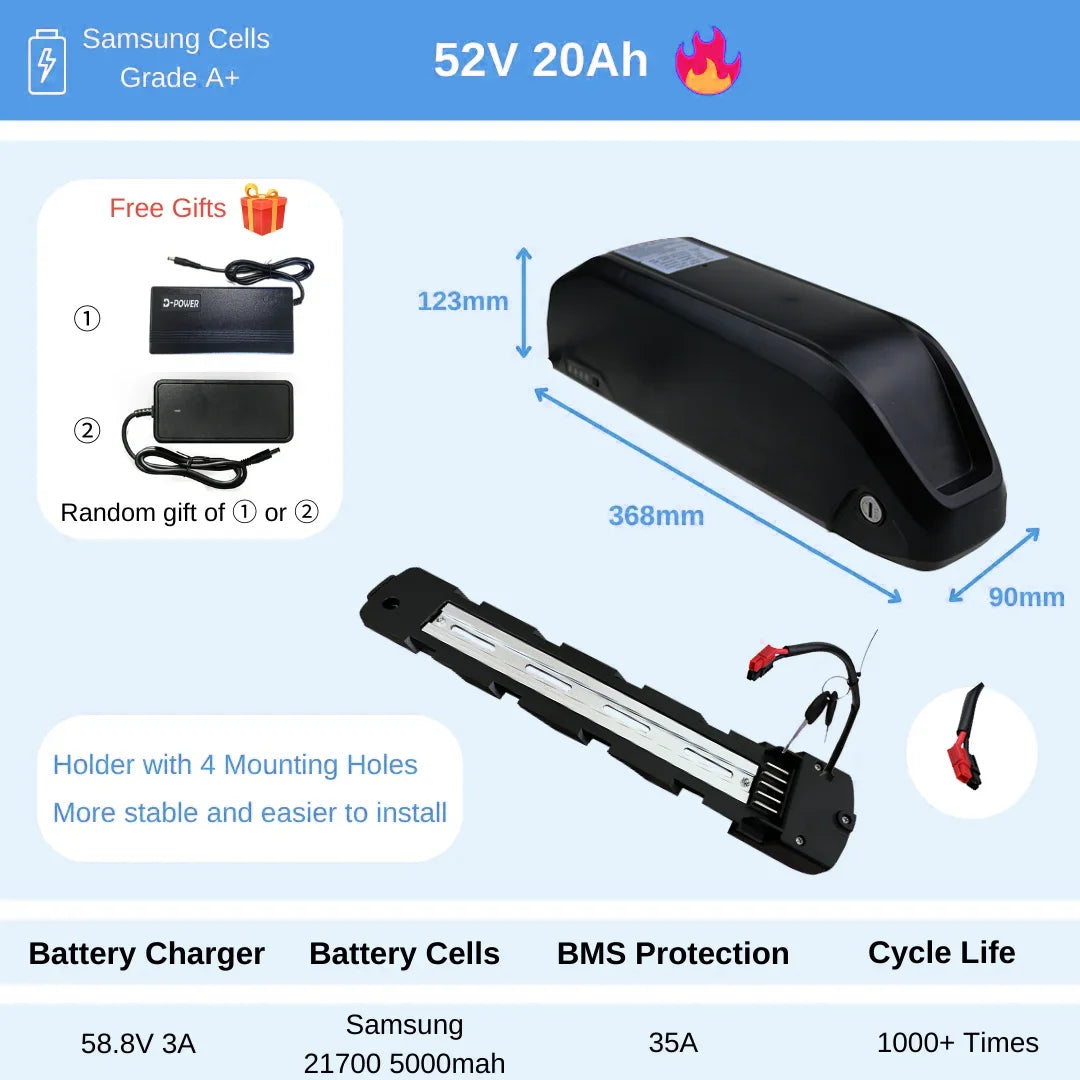

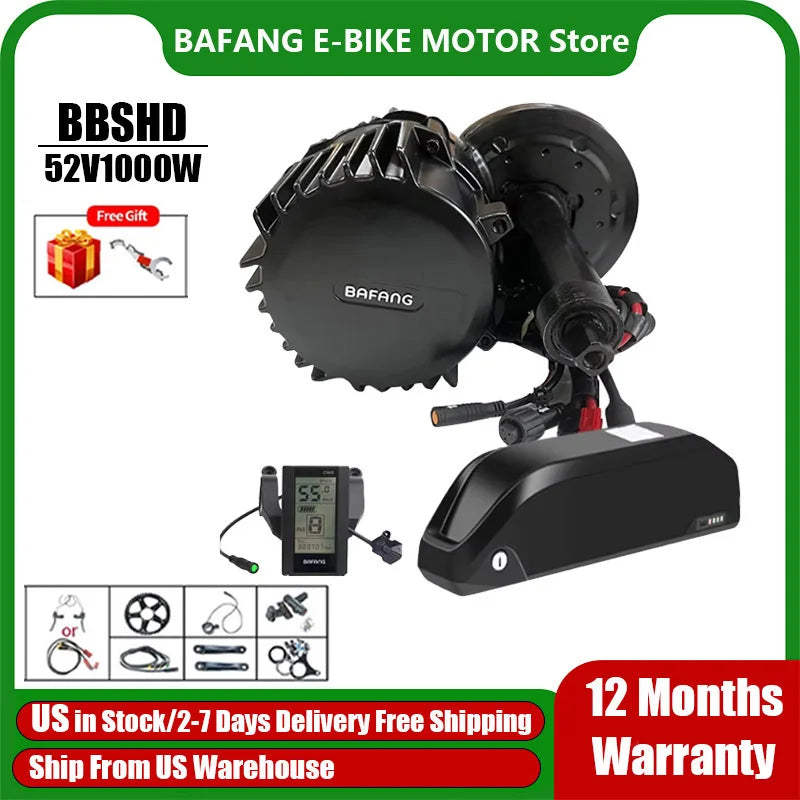

BAFANG BBSHD 1000W 52V Mid Drive Motor Bicycle Electric Bike Conversion Kit with 52V 20AH Battery for E-bike
BAFANG BBSHD 1000W 52V Mid Drive Motor Bicycle Electric Bike Conversion Kit with 52V 20AH Battery for E-bike
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: BAFANG
Hign-concerned Chemical: None
Voltage: 48V
Origin: Mainland China
Design: Brushless
Wattage: > 400w
Certification: CE
Motor Type: Side Hung Motor
Keyword1: Bafang Motor
Keyword2: Mid Drive Motor

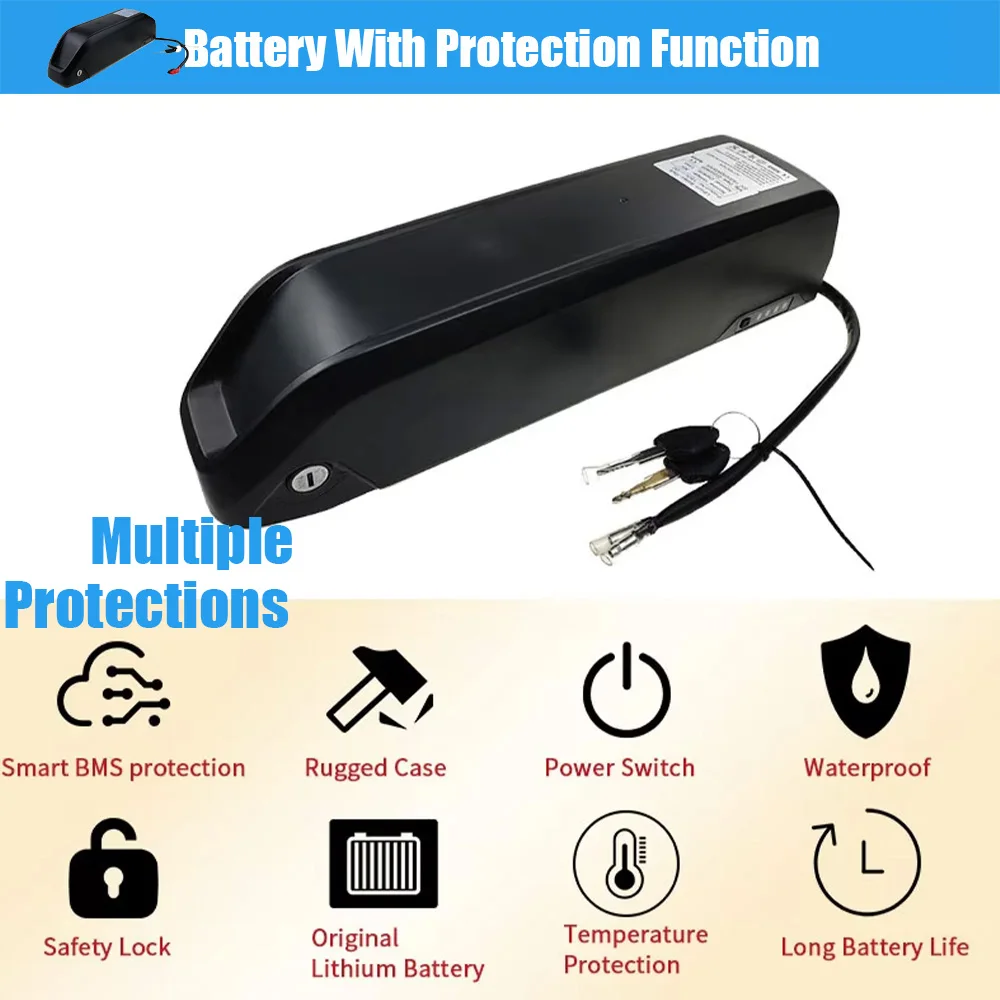

Feature: With Lithium Battery
Our Advantages
1.Warranty:1 Year warranty for Electric Bike Battery and Bafang Mid Drive Motor Kit, free repair or replacement if there is any quality problem.
2.Global Service: Warehouses in United Kingdom, Canada, Germany, United States, Australia, Our expected shipping date is in 7 days after the payment was made. But we usually ship in 24 hours, fast delivery in 3-7 days.
3.Returns & Exchanges:You have 7 calendar days to return and exchange an item from the date you received it. To be eligible, your item must be unused and in the same condition that you received it.
4.Refunds:Once we receive your item, we will inspect it and notify you that we have received your returned item. If your return is approved, we will refund your purchase price and a credit will automatically be applied to your original method of payment.
5.Fans Exclusive Discount & Coupon:Follow our store, visit homepage. If you have any questions or concerns, let us know. We are here 24/7 and always happy to help.
Feature:
Powerful:1000W is the most powerful bafang BBSHD series mid drive motor, max speed up to 60km/h.
Four riding modes:Pure electric mode & human riding model & power assistance & push models. 4 working modes can be switched at will.
Easy Installation:Can be successfully installed into an electric bicycle in just a few time by only a few tools which can remove the crankset and the center shaft, as well as tools for installing this mid-drive motor.

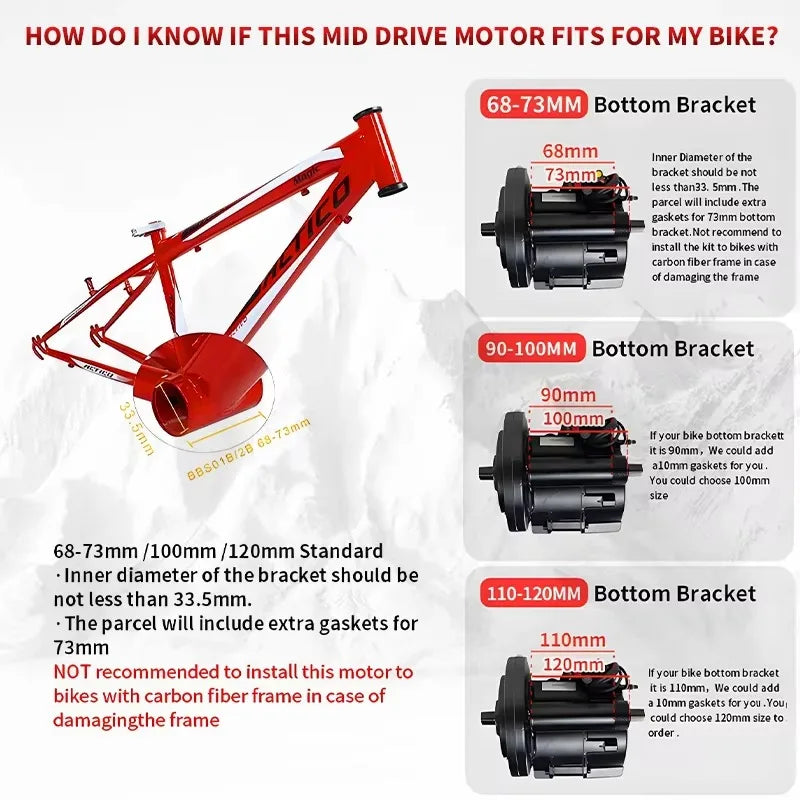

Universal Compatible:It's compatiable with mountain bike,road bike, racing bike ect bikes with 68-73mm bottom bracke.
Warm Tips:
Both 48V 1000W and 52V 1000W are printed 48V 1000W on the motor, just different controllers. The 52V version needs to match rated 52V battery to work. If the battery you use is rated 48V, you need choose 48V version motor. Please kindly choose the right version based on the battery you use.
Motor Specification:

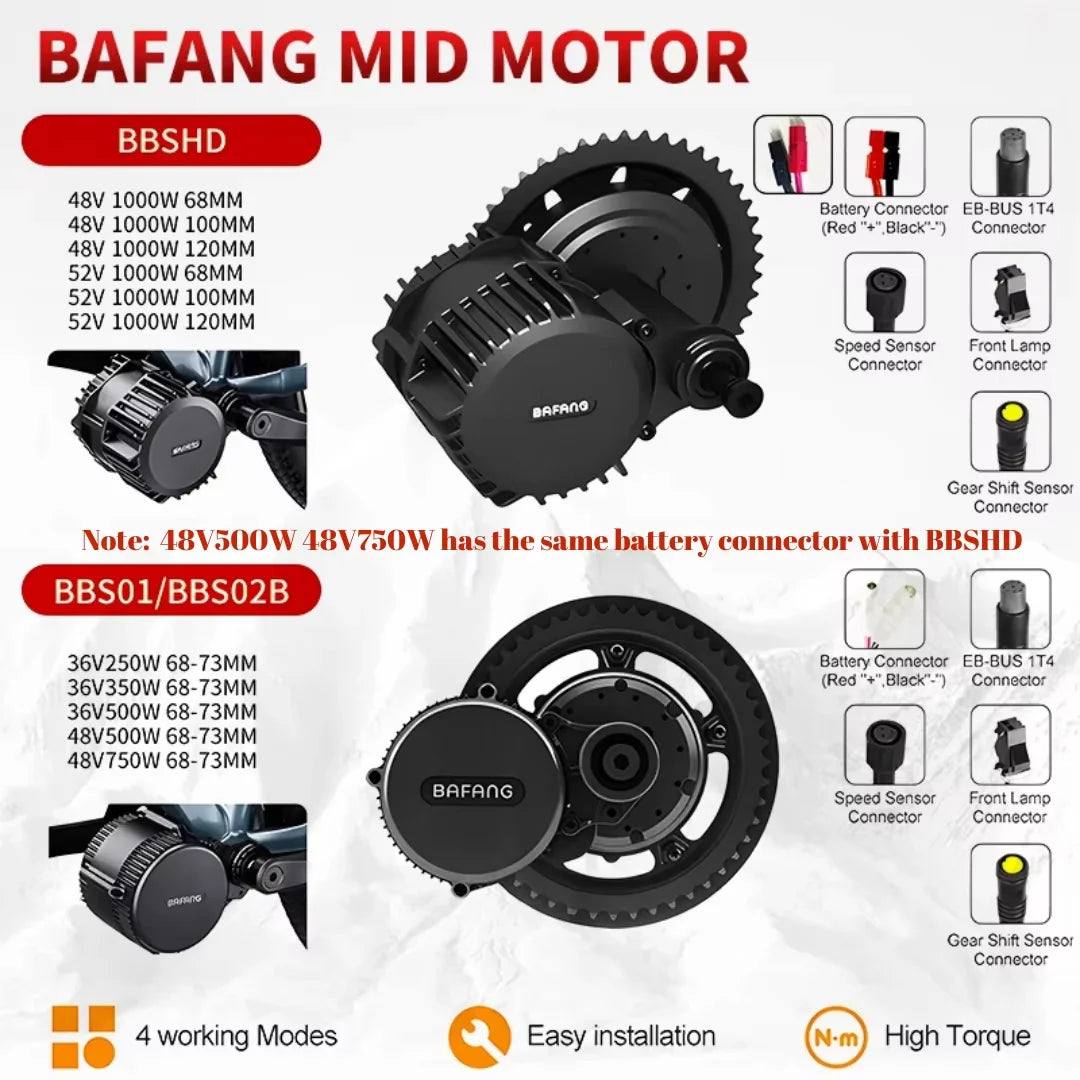

Bafang Model:G320.1000
Power:1000W
Controller Voltage:48V/52V
Controller Current: 30A/28A
No Load Speed(RPM) :160
Load Speed(RPM):140-150
MAX Torque:160 N.m
Efficiency: > 80%
PAS SENSOR : Speed Sensor
Reduction Ratio: 1 : 21.9
Centification:CE/EN 14764/ROHS
Waterproof Grade:IP65
Net Motor Weight: 6.0kg
Bracket bottom length:120mm
Motor Operation Temperature:-20℃-45℃
Display Working Temperature:-20℃-80℃
Waterproof Grade:IP65
You can choose BB size 68mm or 100mm or 120mm
