SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Motorcycle Type: Off-Road Motorcycles

Max. Speed: > 80km/h

Voltage: 72V

Brand Name: Lexsong

Model Number: LS-MECR-X

Place of Origin: China

Battery Type: Lithium

Battery Capacity: 72V30Ah

Max speed: 80km/h

Max load weight: 100kg

Net weight: 71kg

Overall dimensions: 1950*760*1060mm

Disc Brake Thickness: 2.3mm

Wheelbase: 1320mm

Sitting height: 830mm

Ground clearance: 270mm

Product Description

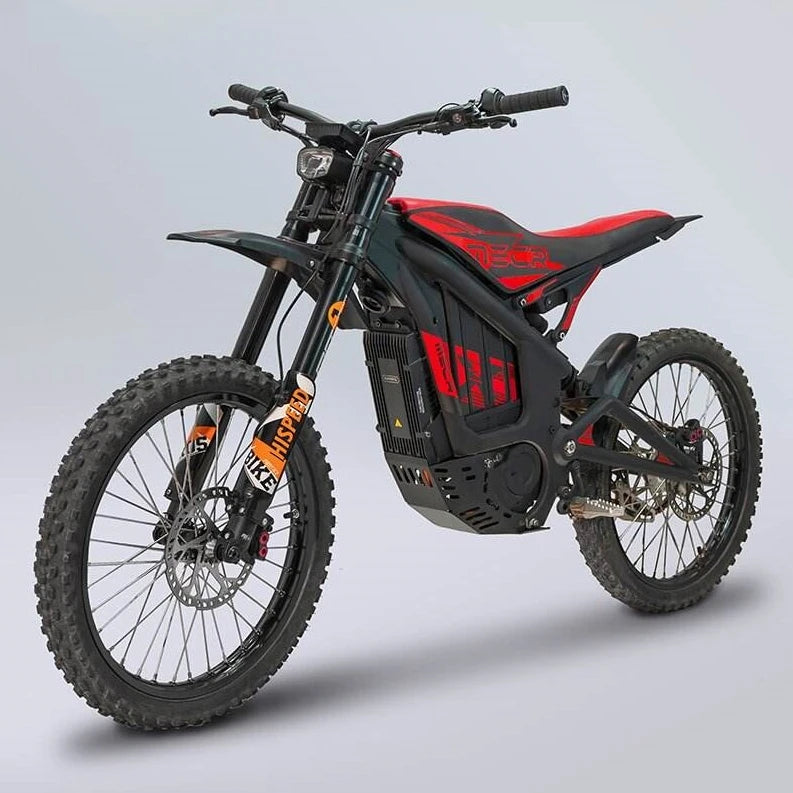

Off road electric motorcycle

Vehicle model	EM-07
Length*width*height(mm)	1894×780×1150mm
wheelbase(mm	1270mm
Minimum ground clearance(mm)	267mm
Height seat(mm)	815mm
curb weight (kg)	62kg
Forward tilt/towing distance(mm)	27°/91mm
Braking form	Hydraulic 4-piston 203mm ventilated disc
Front shock absorption/travel(mm)	Hydraulic inverted telescopic damping adjustable 200mm
Rear shock absorption/travel(mm	Hydraulic airbag preload telescopic damping adjustable 85mm
Tire size	70/100-1942M
Motor form	Radial gear reduction permanent magnet synchronous
Rated voltage	72V
Peak power	6000W
Maximum rotational speed	7000rpm
Maximum torque	42Nm
Waterproof rating	IP67
Reduction ratio/final pass ratio	3.13/3
Maximum speed(km/h	85km/h
Range Per Charge (KMS)82KMS	82KM
Battery specifications	72V30AHCore
Charging time	Electricity 0-100%2.5H
Rated yoltage	60V/72VDC
Peak capaclty	7kVA(15min)/10kVA(1min)













Certifications



Product packaging
