PVBEYORND MPPT Solar Charge Controller 20A 40A 60A Solar Controller MPPT 12V 24V Solar PV Regulator Fit for Lead-acid/Lithium
PVBEYORND MPPT Solar Charge Controller 20A 40A 60A Solar Controller MPPT 12V 24V Solar PV Regulator Fit for Lead-acid/Lithium
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China
Model Number: GM-D
Maximum Current: 60A
Certification: CE
Certification: FCC
Certification: RoHS
Certification: UL
Certification: weee
Is Smart Device: no
Application: Charger Controller
Application: Voltage Controller
Application: Solar System Controller
USB Output: 15W
Fan opening temperature: >45℃
Temperature protection: -10℃ - 65℃
Maximum solar input voltage: 50V DC (20A) / 100V DC (40A 60A)
Rated solar charging current: 20A 40A 60A
Maximum photovoltaic input power: 12V 60A (720W) 24V 60A (1440W)
MPPT Tracking efficiency: More than 99%
Brand Name: PVBEYORND
Choice: yes
semi_Choice: yes
Enjoy lower price discounts:
Dear friends, hello.
We are currently working with Aliexpress to launch coupons that can be used during the event. You can find the coupons for your country and select the corresponding price range to receive the coupon code. Of course, it is worth noting that the coupon can only be used once during the event.
PVBEYORND MPPT Solar Charge Controller 20A 40A 60A Solar Controller MPPT 12V 24V Solar PV Regulator Fit for Lead-acid/Lithium
Product Features：
1. Using advanced dual-peak or multi-peak tracking technology, when the solar panel is shaded or part of the solar panel is damaged, the I-V curve will have multiple peaks, and the controller can still accurately track the maximum power point
2. Built-in maximum power tracking algorithm can significantly improve the energy utilization efficiency of the photovoltaic system, which is about 25% higher than the traditional PWM charging efficiency
3. Combining multiple tracking algorithms, it can accurately track the optimal working point of the I-V curve in a very short time.
4. The MPPT tracking efficiency can reach up to 99.9%
5. The circuit energy conversion efficiency is as high as 98% with the use of advanced digital power technology
6. Supports different types of battery charging programs such as colloidal batteries, sealed batteries, open batteries, lithium batteries, etc.
7. It has a current limiting charging mode. When the power of the battery panel is too large and the charging current is greater than the rated current, the controller automatically reduces the charging power to make it work at the rated charging current
8. It can support instantaneous high current startup of capacitive loads
9. Support automatic identification of battery voltage
10. It has a fault LCD display to facilitate users to determine system faults
11. Built-in over-temperature protection mechanism. When the temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thereby reducing the temperature rise of the controller and avoiding high temperature damage to the controller
12. It has a temperature compensation function, automatically adjusts the charging and discharging parameters, and increases the service life of the battery
13. Complete electronic protection function
14. It uses a metal shell with better heat dissipation performance
15. Lithium battery 0V charging function
Warm Tips:
1. Please read this manual in detail before operating the controller.
2. It is recommended that a suitable fuse or circuit breaker be installed outside the controller.
3. Before installing and adjusting the controller's wiring, be sure to disconnect the fuses or circuit breakers near the PV array and battery terminals.
4. After installation, check that all wiring connections are tight to avoid dangerous heat buildup from incorrect connections.
5. The USB charging function requires the solar charging controller to be turned on and the "ESC" button to be turned on so that the USB can provide current.
6. Currently, the 20A device is not equipped with a fan for cooling because the current is too low. Both the 40A and 60A devices are equipped with dual fans for cooling
7. The product appearance has been optimized. The font above the controller has been changed from white to black. It has good aesthetics.

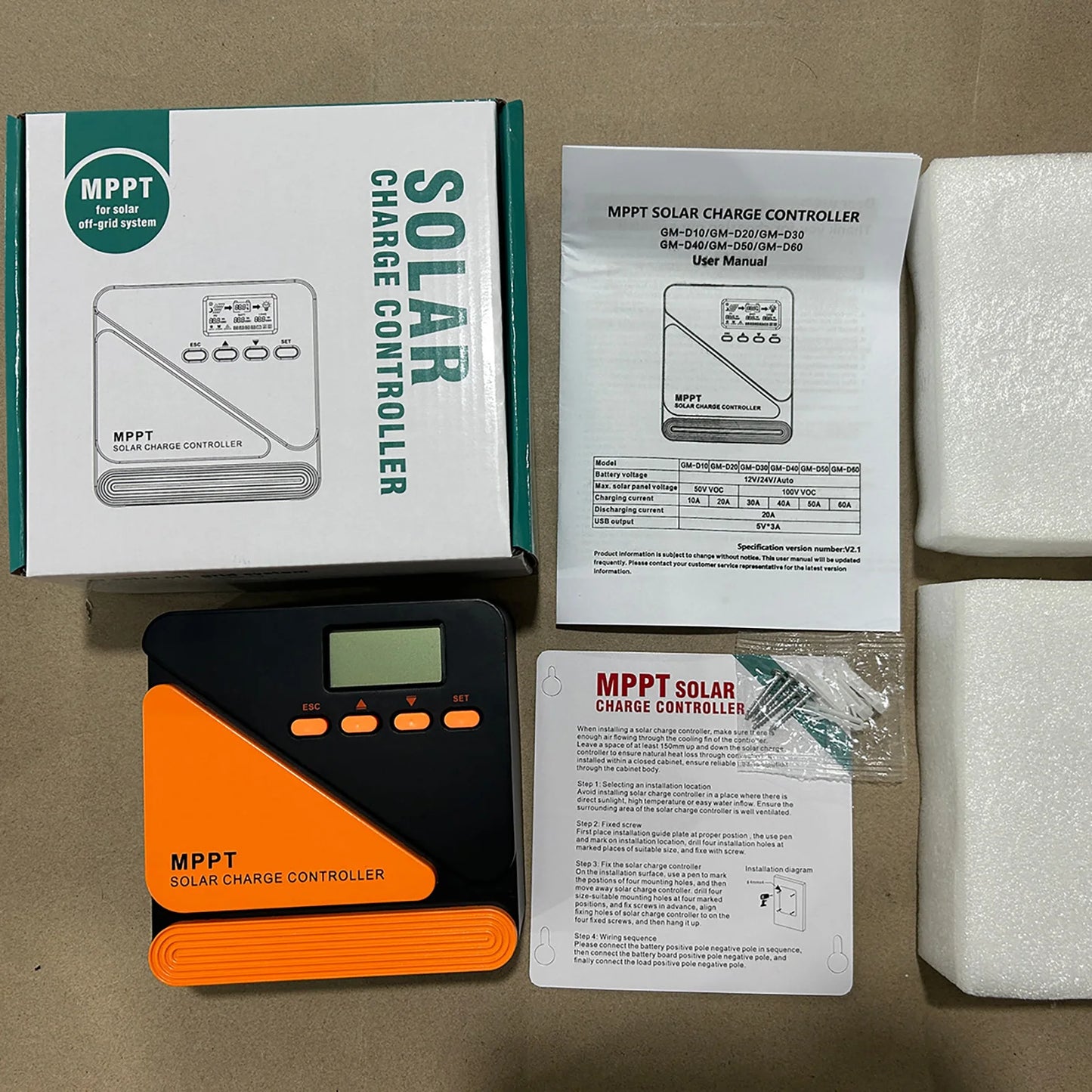

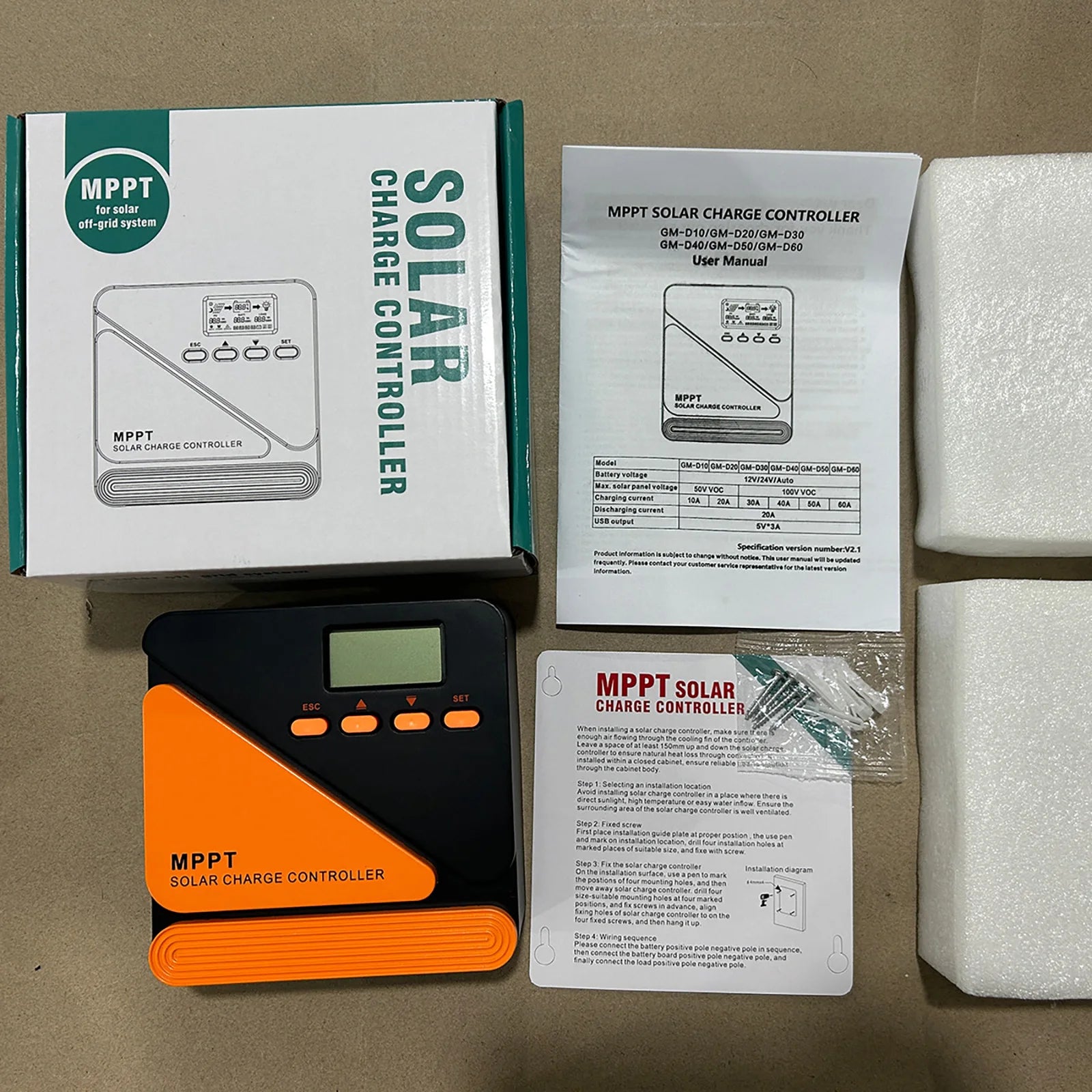

Packing List：
1 x MPPT Solar Charge Controller
1 x Instruction manual
1 x Fixing screw
Reliable Quality, High Quality Products:
1: 40A and 60A models are equipped with dual high-speed fans to continuously cool the equipment, extend the service life and ensure the safety of product use
2: Pure copper coils are equipped with high-quality transformers and innovative MPPT technology. It truly achieves low power consumption and 98% high conversion efficiency
3: The back uses a pure metal shell with good heat dissipation performance and better fixation in suitable scenes without worrying about corrosion caused by long-term use
Compatible with various batteries:
Compatible with: Lifepo4 lithium battery / lead-acid battery / sealed battery / open battery / gel battery, etc.
The product has low power consumption and high conversion efficiency
MPPT tracking efficiency：99%
Circuit energy conversion efficiency：98%
Multiple Protections：
Over discharge protection
Over charge protection
Overload protection
Short circuit protection
Reverse connection protection
Reverse current protection
High temperature protection

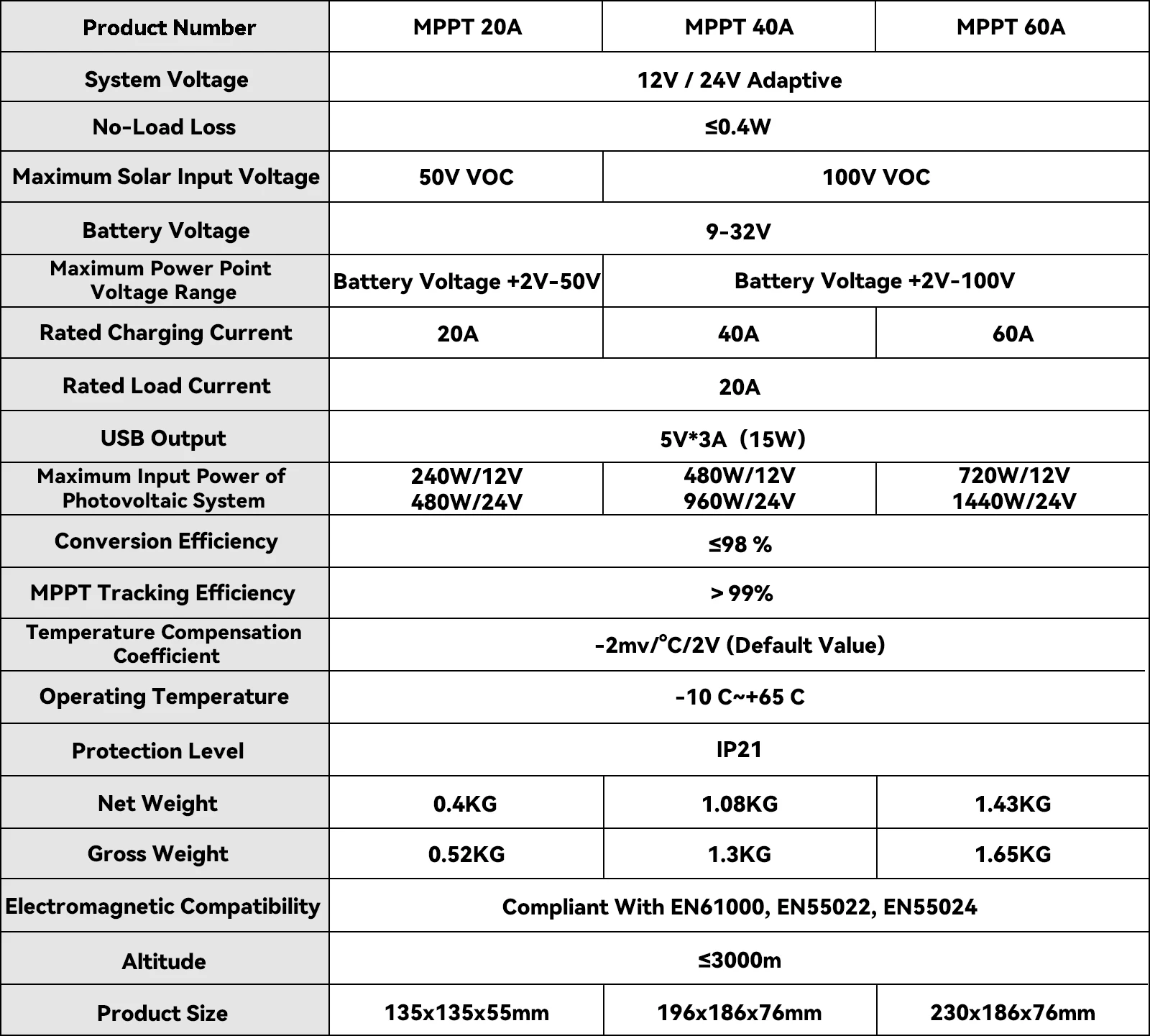

Basic Data：
Below we will introduce various data about this MPPT solar controller in detail in order, namely:
1. Product model
2. System voltage
3. No-load loss
4. Maximum solar input voltage
5. Battery voltage
6. Maximum power point voltage range
7. Rated charging current
8. Rated load current
9. USB output
10. Maximum input power of photovoltaic system
11. Conversion efficiency
12. MPPT tracking efficiency
13. Temperature compensation coefficient
14. Working temperature
15. Protection level
16. Net weight
17. Gross weight
18. Electromagnetic compatibility
19. Altitude
20. Product size

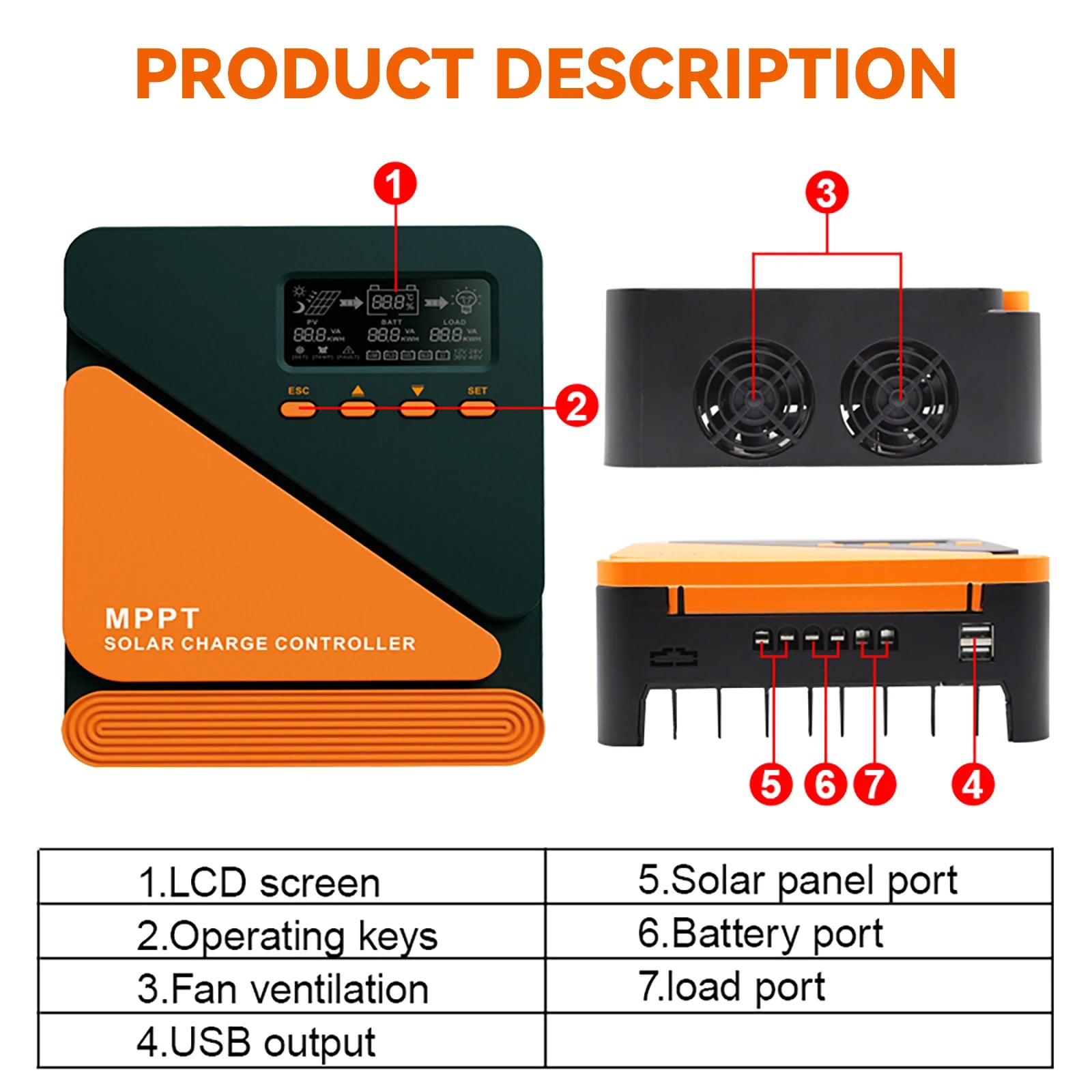

Product Description：
1、LCD screen
2、Operating keys
3、Fan ventilation
4、USB output
5、Solar panel port
6、Battery port
7、Load port

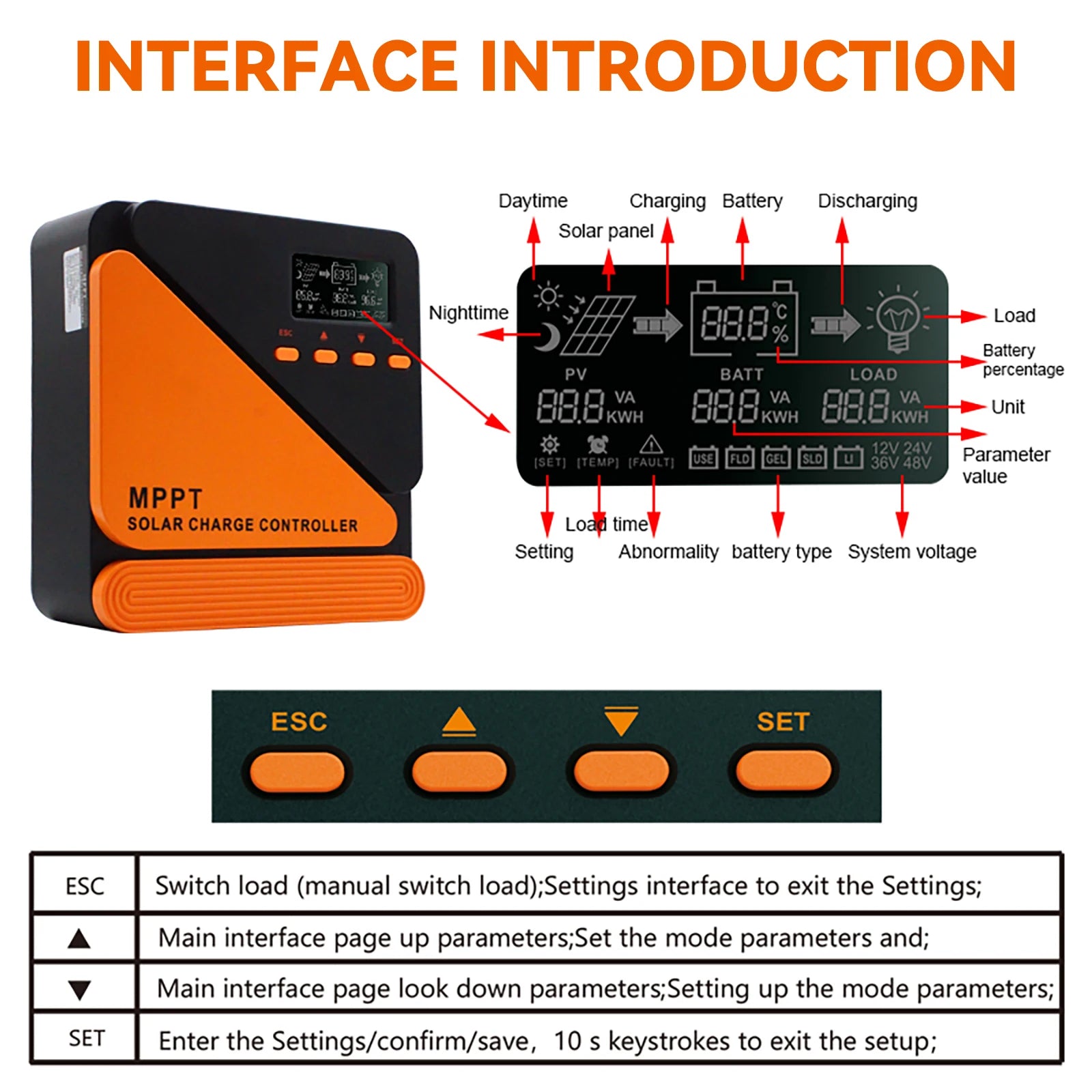

Interface Introduction：
ESC：Switch load on and off (manually switch load on and off); setting interface, exit setting;
Up button：Scroll up on the main interface to view parameters; in setting mode, Select Parameters - Add
Down button：Scroll down the main interface to view parameters; in setting mode, Select Parameters - Reduce
SET：Enter settings/confirm/save, exit settings without any key press for 10 seconds
MPPT SOLAR CHARGE CONTROLLER

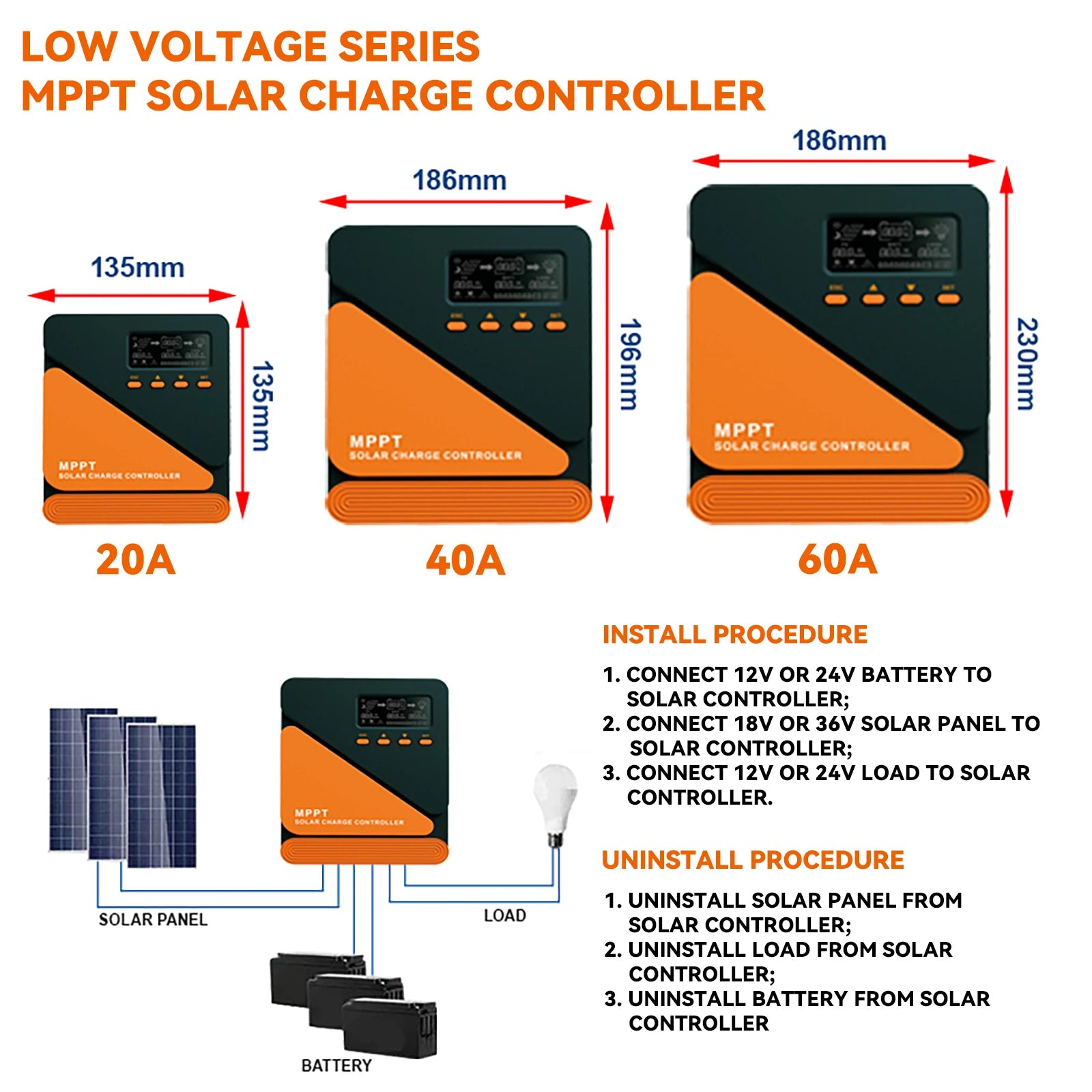

Install Procedure
1、Connect 12V or 24V battery to solar controller
2、Connect 18V or 36V solar panel to solar controller
3、Connect 12V or 24V load to solar controller
Uninstall Procedure
1、uninstall solar panel from solar controller
2、uninstall load from solar controller
3、uninstall battery from solar controller

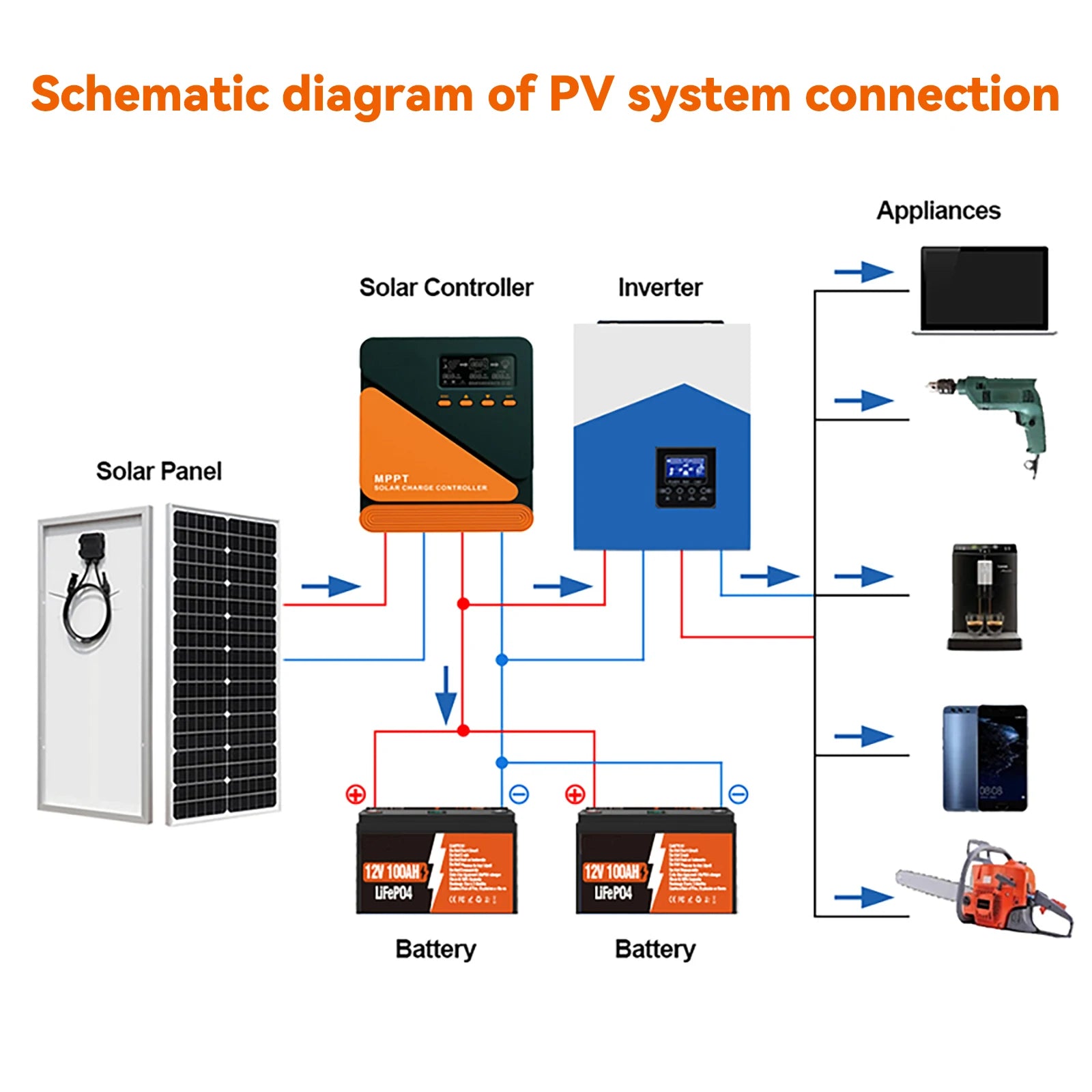

Schematic diagram of PV system connection
Introduction to Maximum Power Point Tracking Technology
Taking the 12V system as an example, because the peak voltage (Vpp) of the solar panel is about 17V and the battery voltage is about 12V, the voltage of the solar panel is about 12V when the general charging controller is charging, and the maximum power is not fully exerted. The MPPT controller can overcome this problem and adjust the input voltage and current of the solar panel from time to time to achieve the purpose of maximum input power.
Compared with the traditional PWM controller, the MPPT controller can exert the maximum power of the solar panel, so it can provide a larger charging current. Generally speaking, MPPT can improve the energy utilization rate by about 25% compared with the PWM controller.
Solar panel output characteristic curve
At the same time, due to different ambient temperature and light conditions, the maximum power point often changes. Our company's MPPT controller can adjust parameters according to different conditions at any time to keep the system near the maximum working point. The whole process is completely automatic and does not require any adjustment by the user.
