1

Motor Type

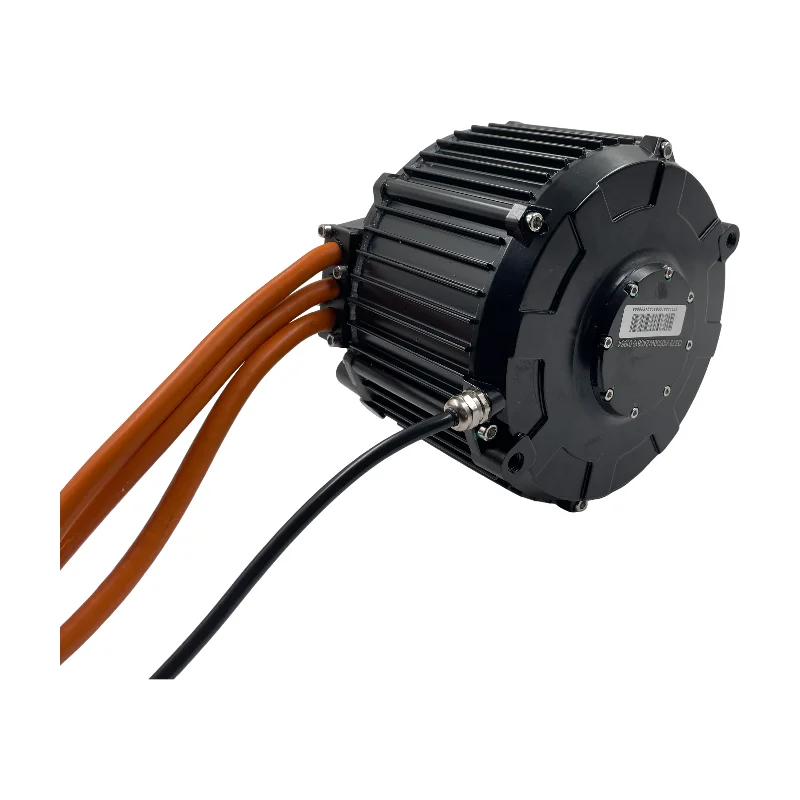

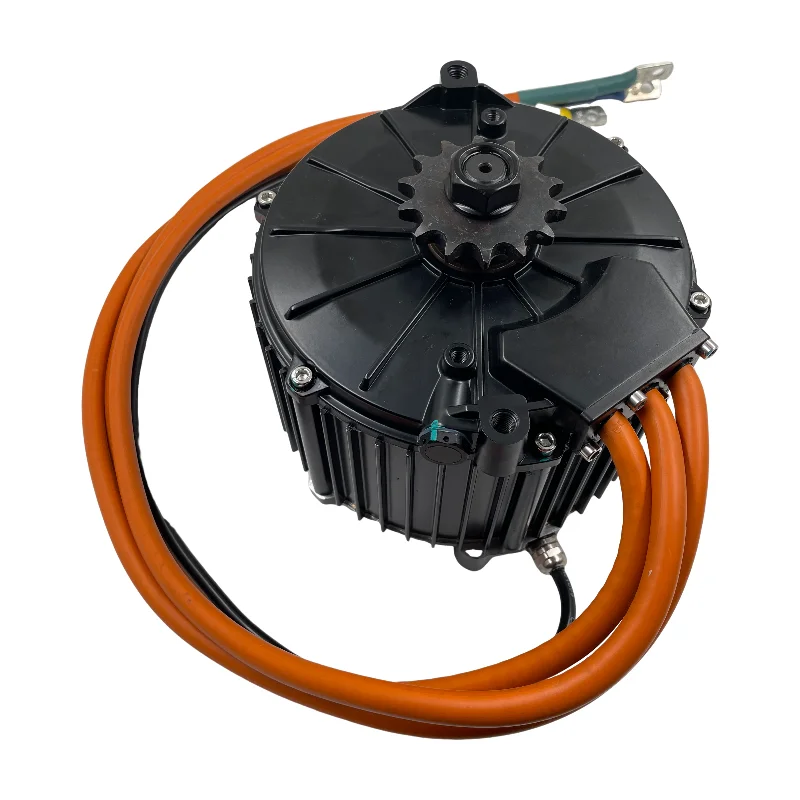

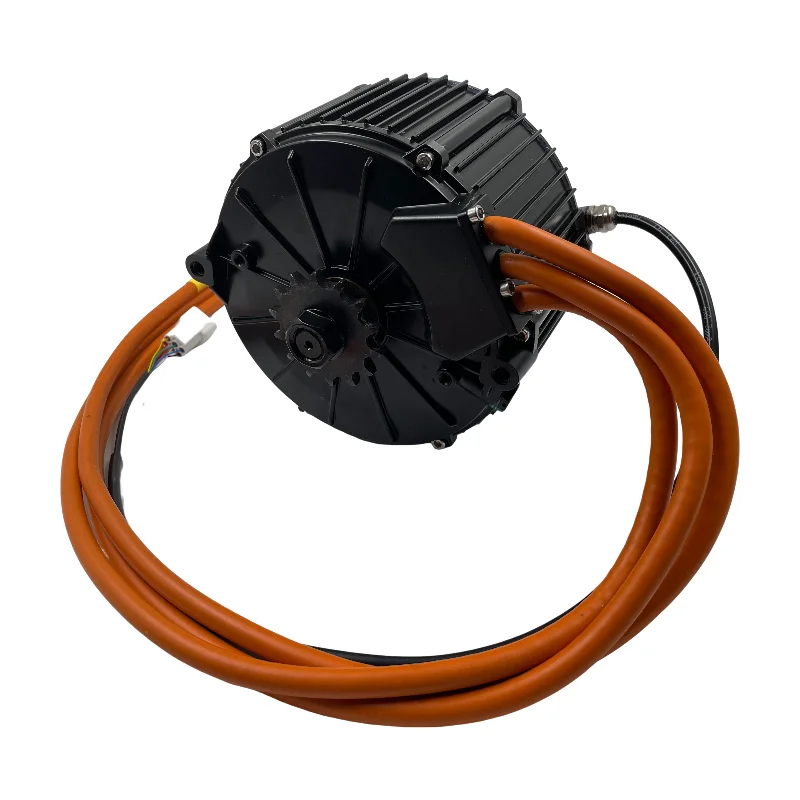

165 Mid-mounted IPM Permanent Magnet Synchronous Motor

PMSM

2

Rated Power

10000W

Peak 200000W

3

Operating Voltage

72VDC

customizable from 48V to 96V

4

Rated Speed

6300RPM

5

Maximum Efficiency

≥94%

6

Maximum Torque

≥50nm

7

Pole Pairs

5

8

Short-Term Overload

Supports continuous operation at 1 times the rated power

2 times overload for a duration

less than 1 minute

9

Controller Current Limit

≤250A

10

Winding Temperature

Class F, maximum of 150 degrees Celsius

Class H supports up to 180 degrees Celsius

11

Sensor Type

Hall Sensor

12

Motor Power Phase Line

≥ 16mm²

13

Insulation Class

Class H

14

Motor Weight

10.8kg

15

Thermistor

KTY83-122

16

Waterproof Rating

IP67

17

Duty Cycle

S9

18

Cooling Method

Natural Cooling
