SiAECOSYS QS165 5000W 72V 35H V1 V2 Mid Drive Motor DNR Foot Go Kart Conversion Kit with Fardriver ND72680 Controller
SiAECOSYS QS165 5000W 72V 35H V1 V2 Mid Drive Motor DNR Foot Go Kart Conversion Kit with Fardriver ND72680 Controller
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Special Features: Drive
Item Width: 32
Country/Region of Manufacture: China
Item Height: 32
Interchange Part Number: 1
Item Weight: 14
Manufacturer Part Number: 2
Other Part Number: 1
Placement on Vehicle: REAR
Material Type: aluminum
Motor type: DC Motor
Item Length: 42
rated power: 5000W
water proof: IP67
SiAECOSYS QS165 5000W 72V 35H V1 V2 Mid Drive Motor DNR Foot Go Kart Conversion Kit with Fardriver ND72680 Controller
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For165 5000W motor powertrain kits,it could be used for electricmotorcycle, which could be 60V 90KPH.
e.g. Similar Light bee
E-motorcycle weight, approx 80kg+1*70kg
Speed: peak 90km/h
Gear ratio: 1:4.77
Climbing slope: 20°@10kph@150kg@60s
Tire: 100/70-19
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.

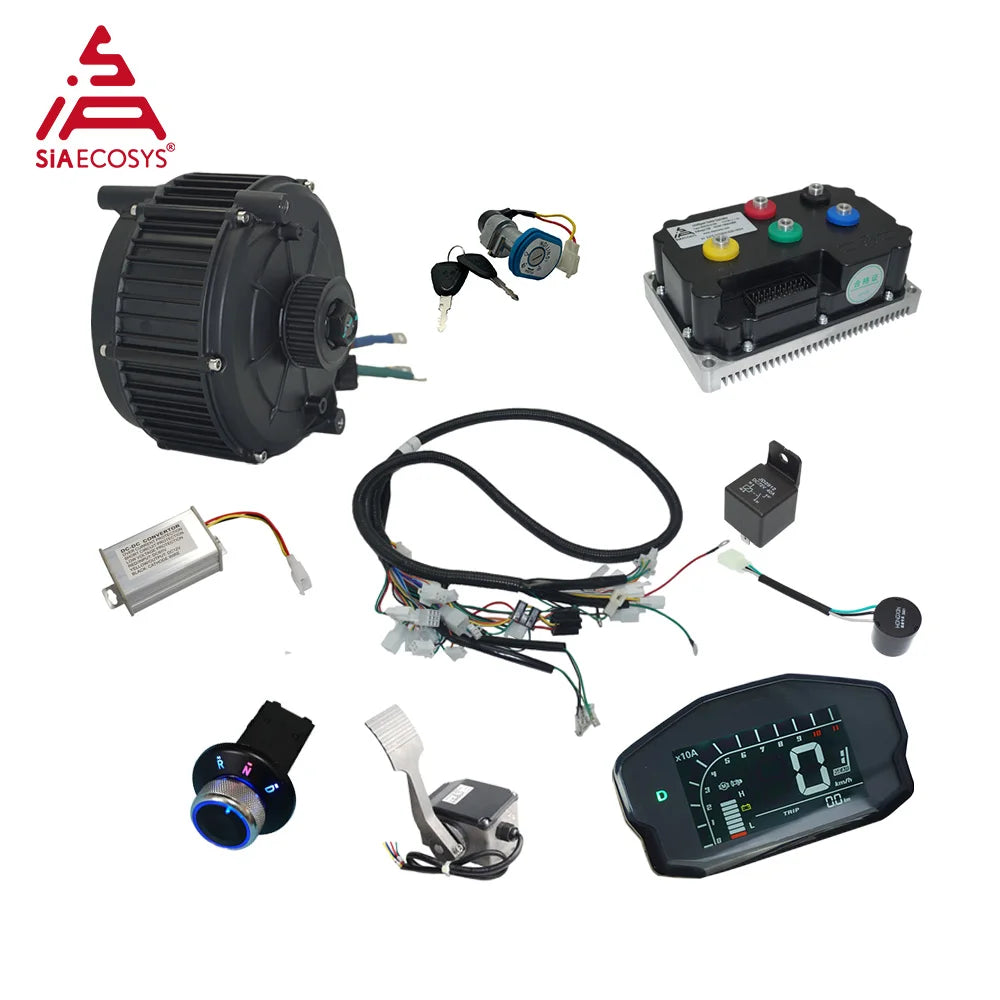

Combo 1
1. 1pcs X QS 165 5000W Hall V2 Mid Drive Motor
2. 1pcs X ND72680 Controller with bluetooth
3. 1pcs X DKD speedometer
4. 1pcs X Foot pedal
5. 1pcs X DNR switch
6. 1pcs X Wiring harness kit
Combo 2
1. 1pcs X QS 165 5000W Hall V2 Mid Drive Motor
2. 1pcs X ND72680 Controller with bluetooth
3. 1pcs X DKD speedometer
4. 1pcs X Foot pedal
5. 1pcs X Wiring harness kit
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description

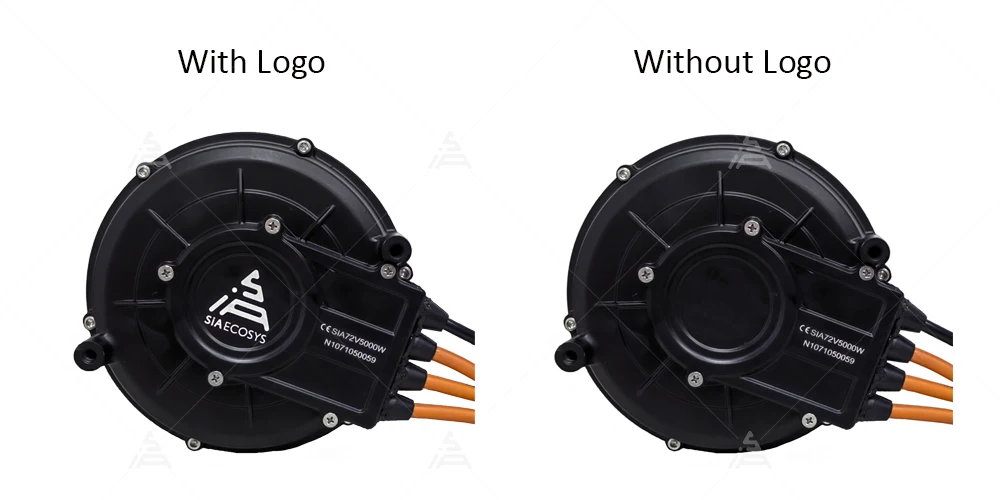

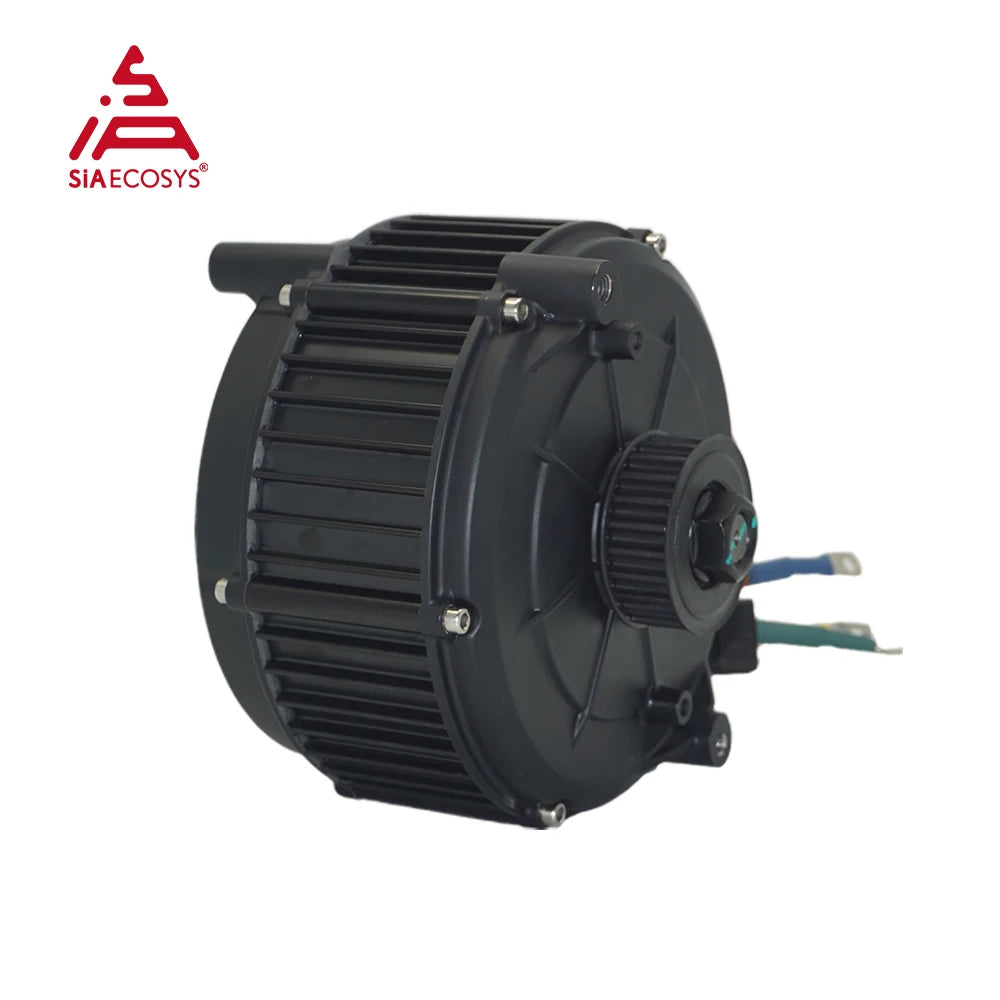

1. QSMOTOR 165 5000W V2 Mid drive motor
Pls noted the motor is Hall version
The differences for 165 V1 and V2
Drawing
Below is the 165 V2 hall version test with ND72680 , DC Current 200A max , Phase current 660A max
Hall version is available,pls contact seller.
Test map

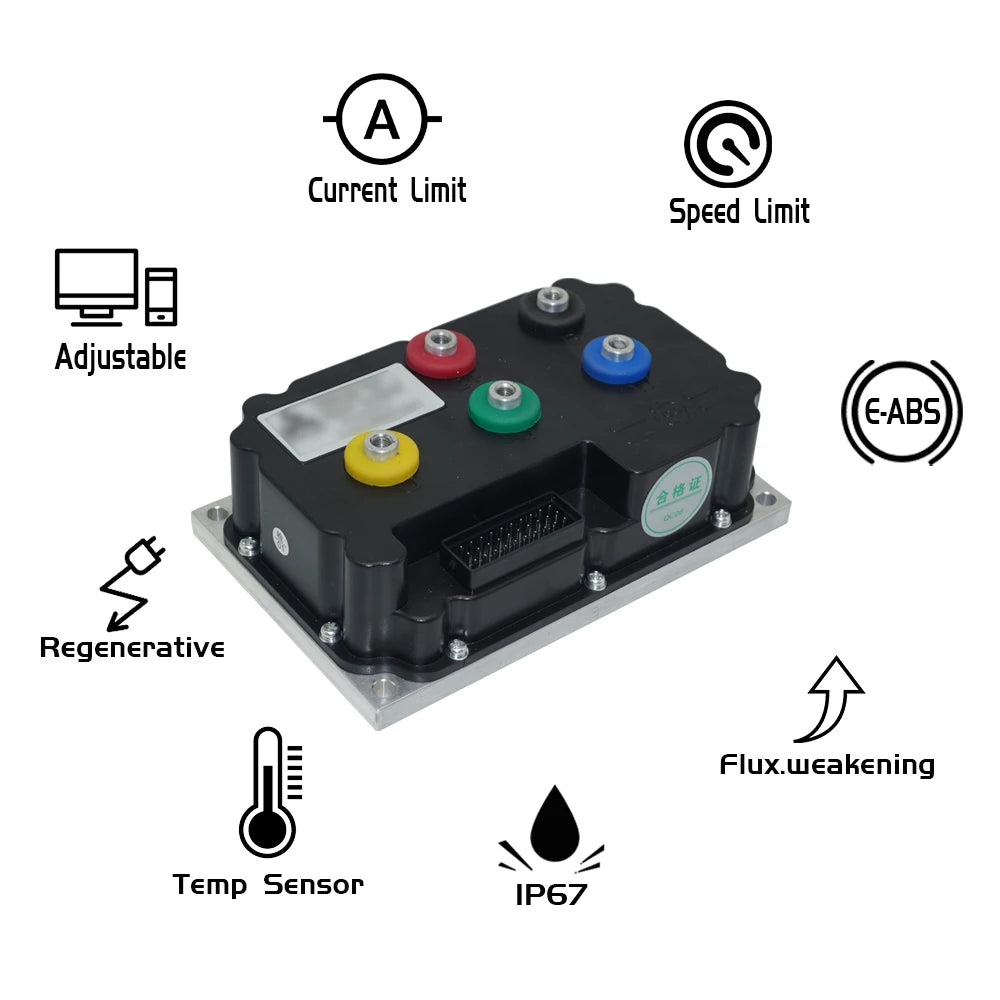

2.ND72680 Controller
ND series controller is sine wave type controller, which is DC controllerwith self-learning function. Generally, it matches well with QS 165 Mid Drive Motor, if you want to match with new brand motor, some parameters should be tested by yourself.
SPEC
Drawing

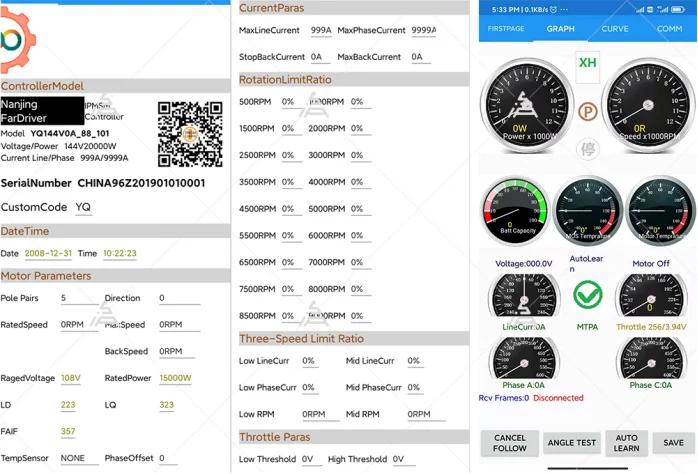

Controller Software Interface
Bluetooth Adapter

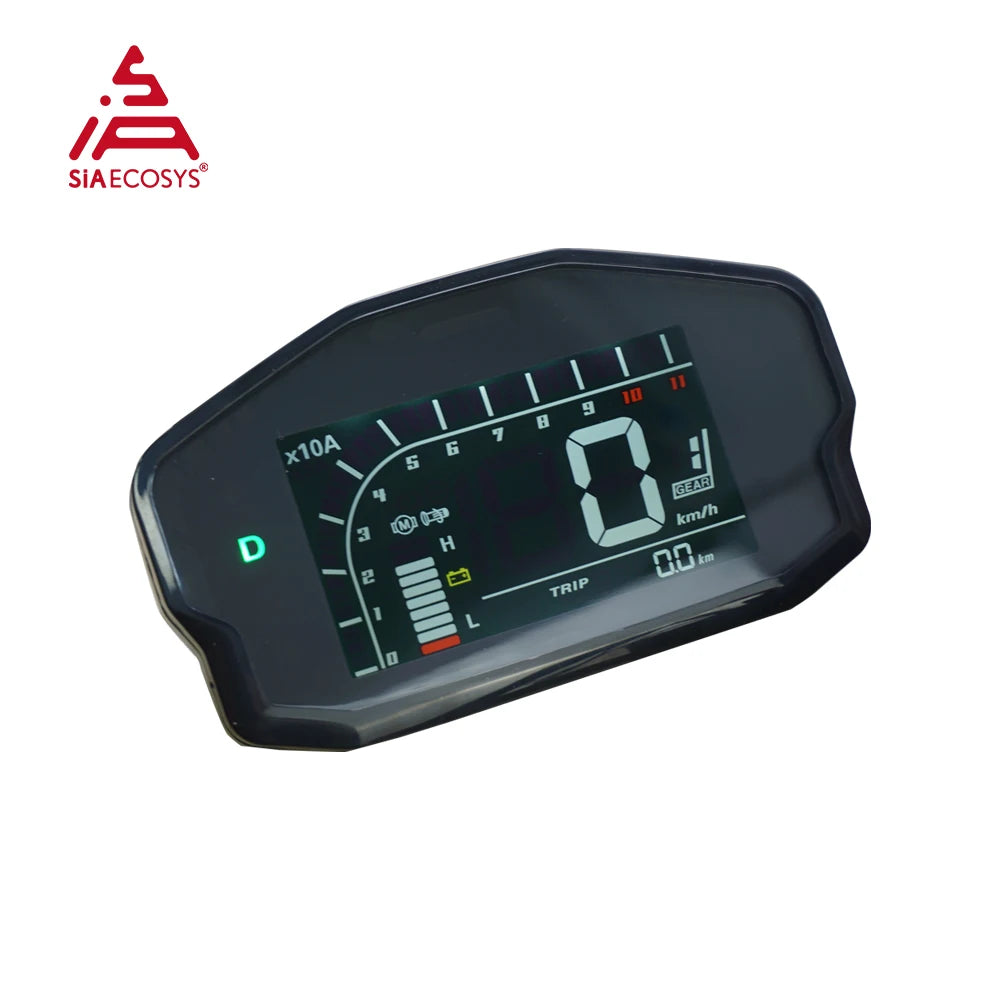

3. DKD speedometer
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.
4. DNR
Include D N R three gears
Throttle Pedal Hall type : JKH model (match with our motor & controller)
Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
Output voltage: 0-5V 5-0V 1-4.2V 4.2-1V 0-10V 10-0V
Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.

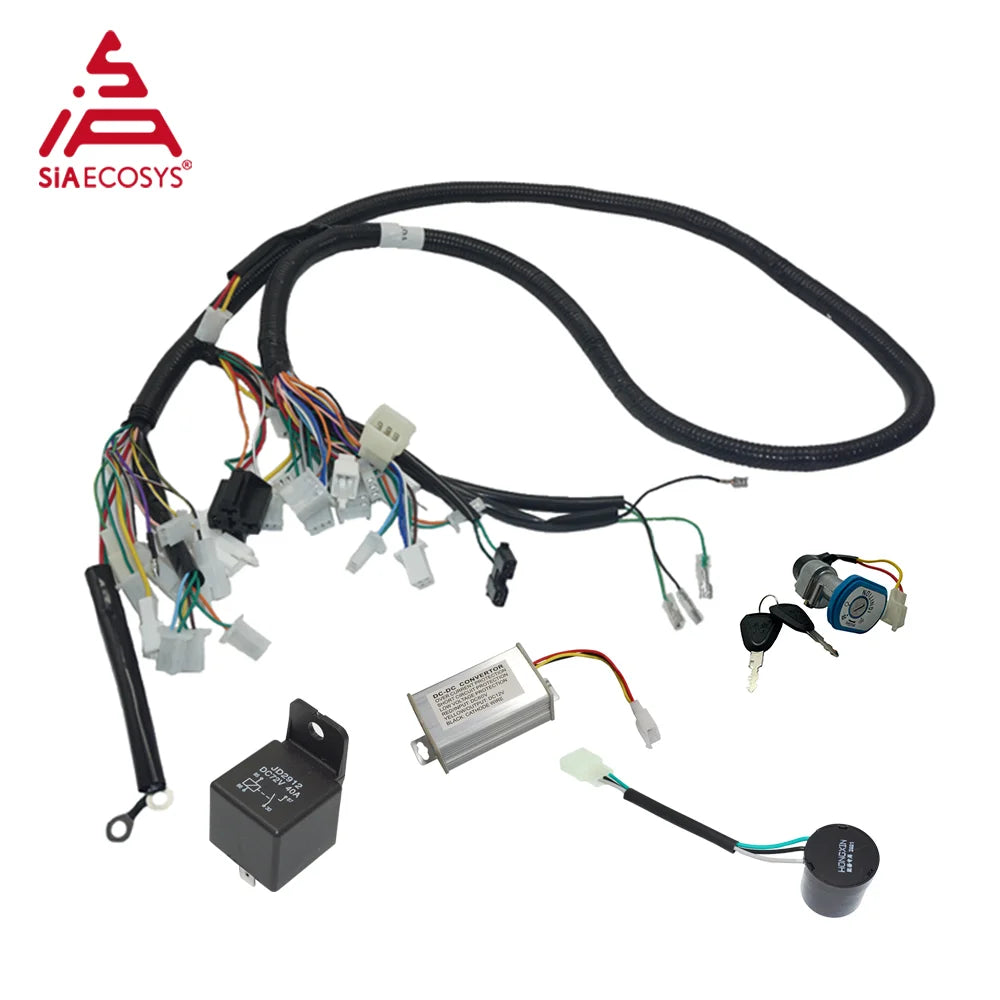

6. Wiring Harness
Hall Version Vehicle Wiring Harness
The ignition key cannot be connected directly with the wiring harness due to the difference of connectors, please contact your dealer for diagram and modification instructions.
